Volano L16: handcrafted construction and generous cutting capacity

Handcrafted reproduction of the celebrated Model L, with cast-iron structure, 350 mm blade and equipment for expert professional use.

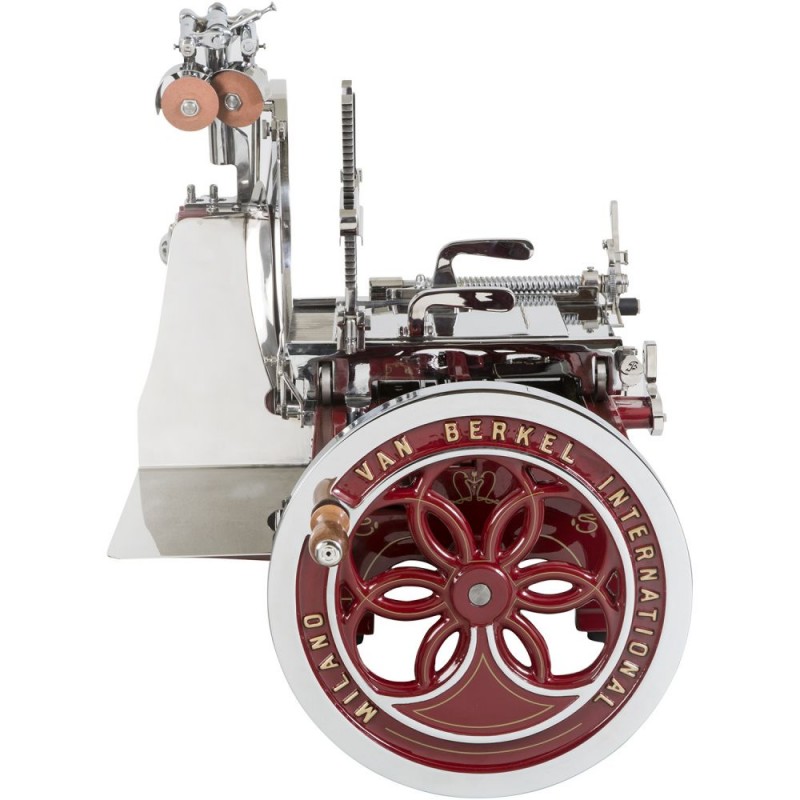

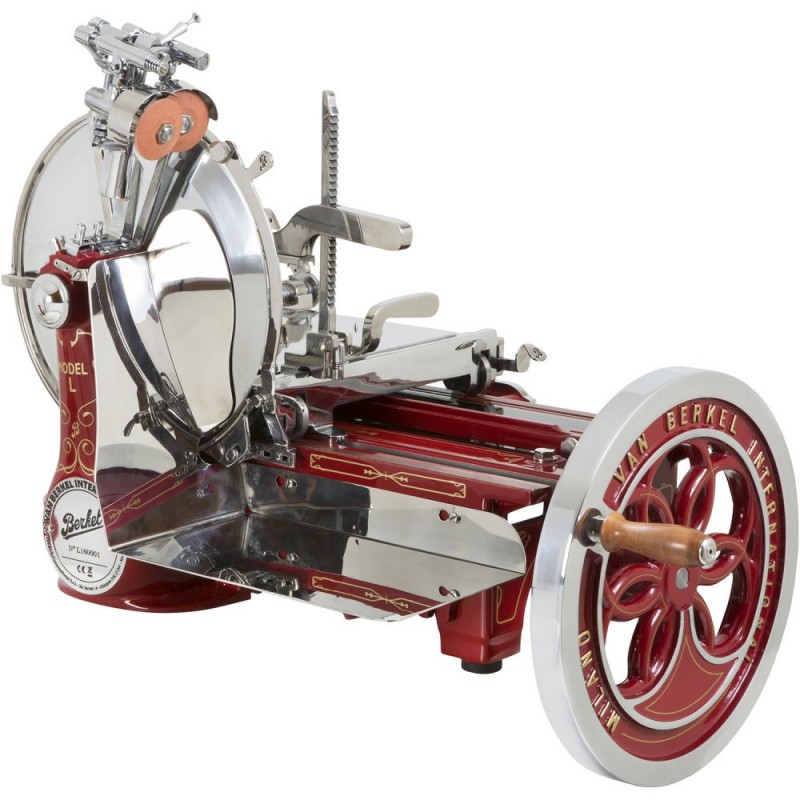

The Berkel Volano L16 Fiorato pays tribute to the celebrated Model L of the early twentieth century. It is handcrafted in painted cast iron with chrome-plated steel details and is intended for experienced professional use.

Cutting performance

• 350 mm 100Cr6 chrome-plated steel blade with professional profile
• Product carriage supported by four large bearings
• Rapid feed system with precise carriage adjustment
• Built-in sharpener with exposed chrome details
• Stainless-steel deflector
• Identification plate with serial number

Cleaning and maintenance

• Professional stainless-steel carriage and sub-carriage with release system
• Generous cleaning clearance and rear waste collection compartment
• Removable stainless-steel receiving tray and deflector, dishwasher safe

Safety systems

• Full steel blade guard ring
• Fixed rear ring compliant with CE requirements
• Ergonomic controls and wooden flywheel handle

Technical specifications

• Type: Manual flywheel slicer
• Transmission: Chain
• Blade diameter: 350 mm
• Blade material: 100Cr6 chrome-plated steel
• Cutting thickness: 0-4 mm
• Blade inclination: 38°
• Sharpener: Built-in, single-action
• Colour: Red - Gold Decorations

Dimensions and cutting capacity

• Width [A]: 600 mm
• Height [B]: 750 mm
• Depth [C]: 880 mm
• Circular cutting capacity: 210 mm
• Rectangular cutting capacity: 260x200 mm
• Weight: 105 kg

Some details may differ from those shown in the image.
