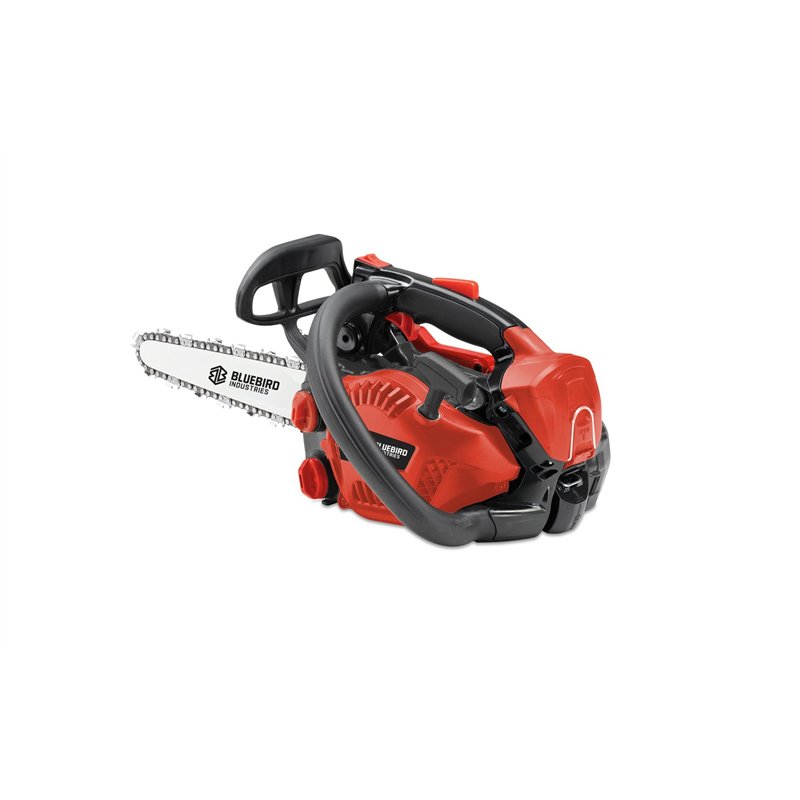

Petrol chainsaw Blue Bird CSP 270 TC: for cutting wood

The petrol chainsaw Blue Bird CSP 270 TC is designed to make pruning work easier using a cutting assembly consisting of a guide bar and chain. The 25 cm bar guides the chain during cutting; the carving configuration distinguishes this version from the standard bar.

Guide bar and chain: choosing the configuration

Guide bar length identifies the cutting assembly and does not represent a guaranteed maximum cutting diameter. For replacement parts, check pitch, gauge, drive-link count and model compatibility: bar length alone is not enough to identify a compatible chain.

A carburettor primer and side chain tensioner are included in the specifications. Follow the machine’s instructions for tensioning and starting.

Technical specifications

• Brand: Blue Bird
• Model: CSP 270 TC
• Product code: 884440
• EAN: 8025518451207
• Displacement: 25 cc
• Power: 0.9 kW
• Guide bar length: 25 cm carving
• Chain: 1/4 LP – 1.3 mm
• Carburettor: Walbro
• Carburettor primer: Yes
• Side chain tensioner: Yes
• Fuel mixture tank: 170 ml
• Chain oil tank: 140 ml
• Weight without fuel mixture, bar and chain: 2.45 kg

Included equipment

• Machine: Chainsaw CSP 270 TC with a 25 cm carving bar

Use and maintenance

Follow the model’s manual for preparation, use, lubrication and maintenance of the cutting assembly. For this petrol machine, check the manual for the required fuel and its preparation. Use the protective equipment specified by the manufacturer.
