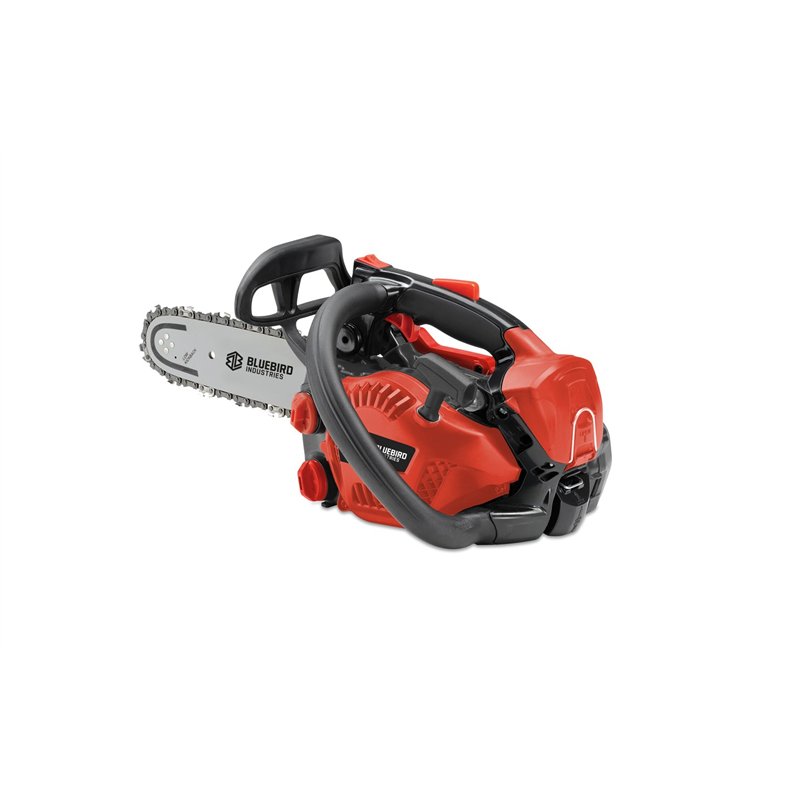

Petrol pruning chainsaw Blue Bird CSP 270 T: for cutting wood

The petrol pruning chainsaw Blue Bird CSP 270 T is designed to make pruning work easier using a cutting assembly consisting of a guide bar and chain. The 25 cm bar guides the chain during cutting; petrol power allows work without a mains connection.

Guide bar and chain: choosing the configuration

Guide bar length identifies the cutting assembly and does not represent a guaranteed maximum cutting diameter. For replacement parts, check pitch, gauge, drive-link count and model compatibility: bar length alone is not enough to identify a compatible chain.

The carburettor primer prepares the fuel circuit for starting and must be used as instructed in the manual. The side chain tensioner allows tension adjustment from the side of the machine. Automatic lubrication feeds the chain oil system; oil checks and the specified maintenance are still required.

Blue Bird presents the CSP 270 T as a light, manoeuvrable pruning chainsaw. The stated 2.45 kg weight is measured without fuel mixture, bar and chain; it is not the weight of the complete machine ready for work.

Technical specifications

• Brand: Blue Bird
• Model: CSP 270 T
• Product code: 884400
• EAN: 8025518450989
• Displacement: 25 cc
• Power: 0.9 kW
• Guide bar length: 25 cm
• Chain: 3/8 LP – 1.3 mm
• Carburettor: Walbro
• Chain lubrication: Automatic
• Carburettor primer: Yes
• Side chain tensioner: Yes
• Fuel mixture tank: 170 ml
• Chain oil tank: 140 ml
• Weight without fuel mixture, bar and chain: 2.45 kg

Included equipment

• Machine: Chainsaw CSP 270 T with a 25 cm bar

Use and maintenance

Follow the model’s manual for preparation, use, lubrication and maintenance of the cutting assembly. For this petrol machine, check the manual for the required fuel and its preparation. Use the protective equipment specified by the manufacturer.
