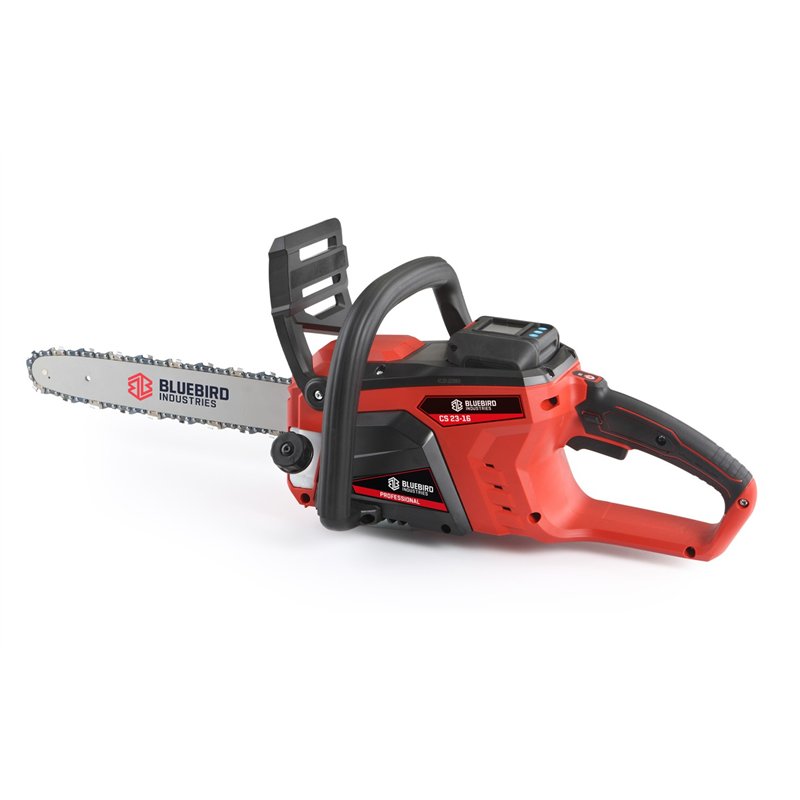

Battery chainsaw Blue Bird CS 23-16: for cutting wood

The battery chainsaw Blue Bird CS 23-16 is designed to make wood cutting easier with a chain cutting assembly and no mains connection. The brushless motor is combined with automatic chain lubrication. This version is supplied without battery and charger, which must be selected from the system specified for this model.

Power supply and lubrication

The automatic oil pump feeds the chain lubrication system during work. Check the oil and follow the manual for chain tensioning and maintenance.

The model uses a battery rated at 50.4 V maximum and 5 Ah. The 18 Ah backpack battery is a separate option that also requires the connector specified by the manufacturer.

Choose the version and power supply accessories for this product code: matching voltage alone does not confirm compatibility. Guide bar length does not represent a guaranteed cutting capacity.

Technical specifications

• Brand: Blue Bird
• Model: CS 23-16
• Product code: 887960
• EAN: 8025518483840
• Motor / engine: Brushless
• Nominal voltage: 43.2 V
• Maximum voltage: 50.4 V
• Power: 2500 W
• Guide bar: 16 inches – 40 cm
• Chain: 3/8 inch – 56 drive links
• Chain speed: 20 m/s
• Oil pump: Automatic
• Machine weight: 4.5 kg

Included equipment

• Machine: Chainsaw CS 23-16
• Battery: Not included
• Charger: Not included

Use and maintenance

Follow the model’s manual for preparation, use, lubrication and maintenance of the cutting assembly. Check the battery and charger specified for this machine. Use the protective equipment specified by the manufacturer.
