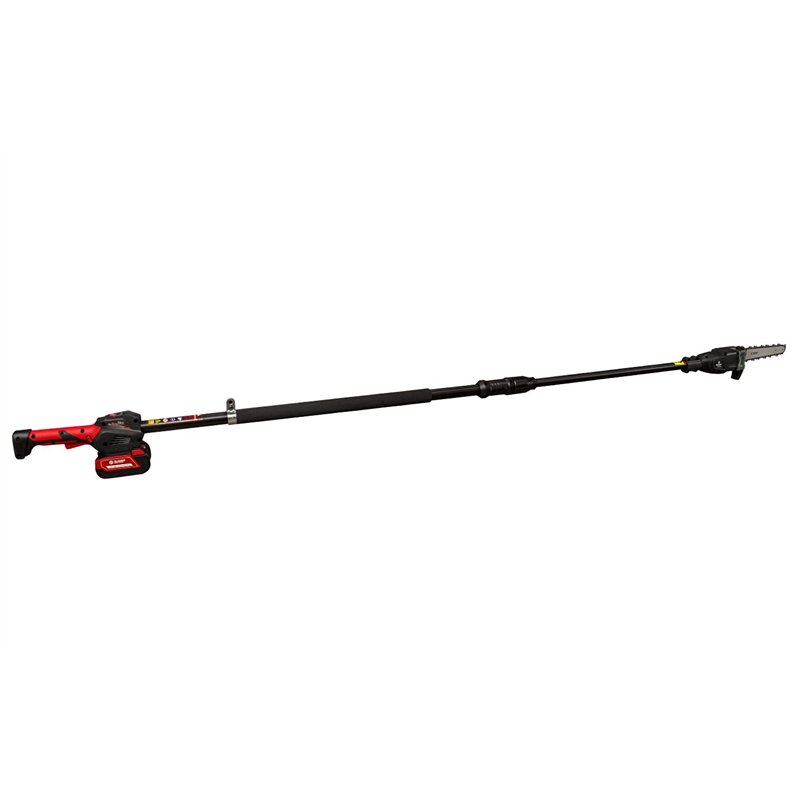

Telescopic battery pole chain pruner Blue Bird PCS 22-10A: for branch care and pruning

The telescopic battery pole chain pruner Blue Bird PCS 22-10A is designed to make pruning easier by positioning the cutting assembly farther from the operator's hands. The 9-inch bar lets you position the cutting assembly on higher branches.

Features and use

This model features a brushless motor, automatic oil pump and LED display. Version 888450 includes a 5 Ah battery; its supplied equipment differs from other configurations of the same model.

A brushless motor is an electric motor without brushes. The model's instructions must still be followed for use and maintenance.

The bar measurement describes the cutting assembly, while any stated cutting capacity is a separate specification. When choosing a replacement bar or chain, check compatibility with the model and all chain parameters, rather than relying on length alone.

Technical specifications

• Brand: Blue Bird
• Model: PCS 22-10A
• Product code / MPN: 888450
• EAN: 8025518496291
• Motor: Brushless
• Nominal voltage: 18 V
• Maximum voltage: 21 V
• Minimum length: 177 cm
• Maximum length: 257 cm
• Bar: 9 inches
• Chain: Pitch 1/4 inch; gauge 1.1 mm; 49 links
• Oil pump: Automatic
• Display: LED
• Included battery: 1 lithium battery with 21 V max – 5 Ah
• Stated charging time: 3–4 hours
• Weight with battery: 3.5 kg

Included equipment

• Telescopic pole chainsaw PCS 22-10A code 888450
• 1 lithium battery with 21 V max – 5 Ah

Use and maintenance

Follow the manufacturer's instructions for using, lubricating and maintaining the cutting assembly. Before working on the tool, disconnect the power supply as instructed in the manual.
