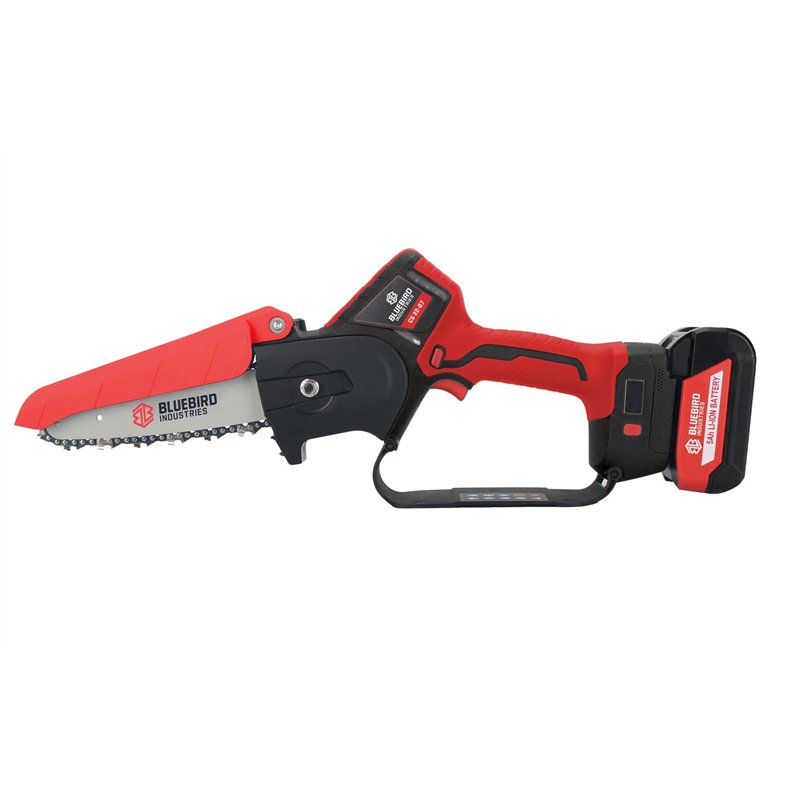

Battery chain pruner Blue Bird CS 22-07: for branch care and pruning

The battery chain pruner Blue Bird CS 22-07 is designed to make cutting branches easier when caring for trees and shrubs. Its cutting assembly combines a guide bar and chain: the bar guides the chain during cutting, while battery power allows work without a mains connection.

Features and use

The cutting assembly features automatic lubrication and a stated chain speed of 11.5 m/s. The 18 V nominal and 21 V maximum power supply allows pruning without connection to an electrical socket.

A brushless motor is an electric motor without brushes. The model's instructions must still be followed for use and maintenance.

The bar measurement describes the cutting assembly, while any stated cutting capacity is a separate specification. When choosing a replacement bar or chain, check compatibility with the model and all chain parameters, rather than relying on length alone.

Technical specifications

• Brand: Blue Bird
• Model: CS 22-07
• Product code / MPN: 887850
• EAN: 8025518483727
• Motor: Brushless
• Nominal voltage: 18 V
• Maximum voltage: 21 V
• Power: 750 W
• Bar: 7 inches – 175 mm stated in the catalogue
• Chain: Pitch 1/4 inch; 42 links
• Sprocket: 8 teeth
• Chain speed: 11.5 m/s
• Oil pump: Automatic
• Included battery: 1 lithium battery with 21 V max – 5 Ah
• Weight with battery: 1.7 kg

Included equipment

• Pruning chainsaw CS 22-07
• 1 lithium battery with 21 V max – 5 Ah
• Charger
• Service tools

Use and maintenance

Follow the manufacturer's instructions for using, lubricating and maintaining the cutting assembly. Before working on the tool, disconnect the power supply as instructed in the manual.
