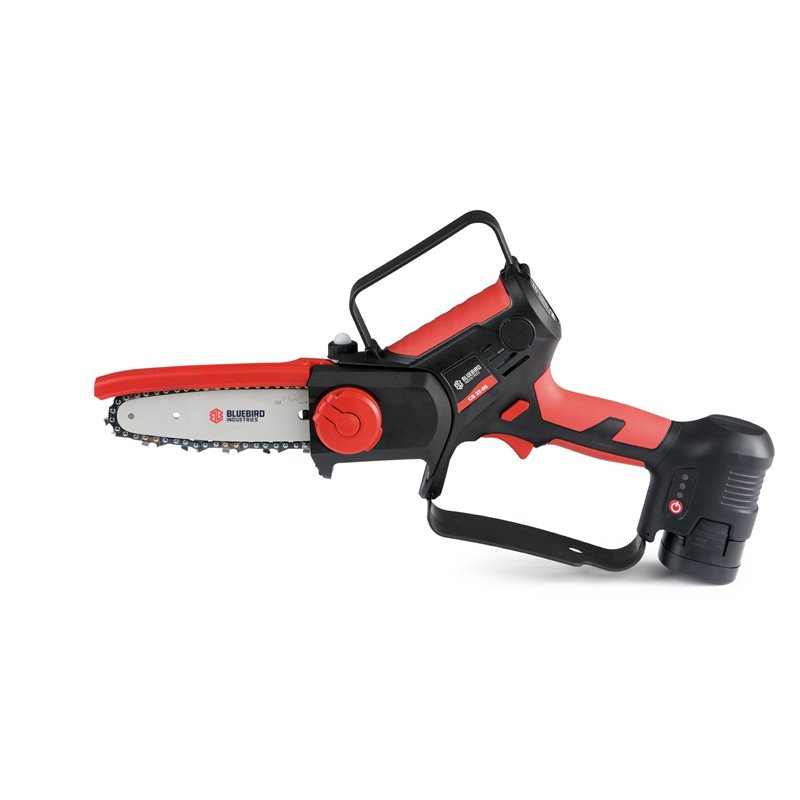

Battery chain pruner Blue Bird CS 22-06: for branch care and pruning

The battery chain pruner Blue Bird CS 22-06 is designed to make cutting branches easier when caring for trees and shrubs. Its cutting assembly combines a guide bar and chain: the bar guides the chain during cutting, while battery power allows work without a mains connection.

Features and use

The manual oil pump lets you lubricate the chain as instructed in the user manual. The tank has a stated capacity of 16 ml; the cutting assembly uses a chain with a 1/4-inch pitch.

The bar measurement describes the cutting assembly, while any stated cutting capacity is a separate specification. When choosing a replacement bar or chain, check compatibility with the model and all chain parameters, rather than relying on length alone.

Technical specifications

• Brand: Blue Bird
• Model: CS 22-06
• Product code / MPN: 887420
• EAN: 8025518428353
• Motor: Brushed
• Maximum voltage: 16.8 V
• Maximum power: 220 W
• Bar: 5 inches
• Chain: Pitch 1/4 inch; gauge 1.1 mm; 34 links
• Oil tank: 16 ml
• Oil pump: Manual
• Included batteries: 2 lithium batteries with 16.8 V max – 2.5 Ah
• Stated charging time: 2.5–3.5 hours
• Weight with battery: 1.4 kg

Included equipment

• Pruning chainsaw CS 22-06
• 2 lithium batteries with 16.8 V max – 2.5 Ah

Use and maintenance

Follow the manufacturer's instructions for using, lubricating and maintaining the cutting assembly. Before working on the tool, disconnect the power supply as instructed in the manual.
