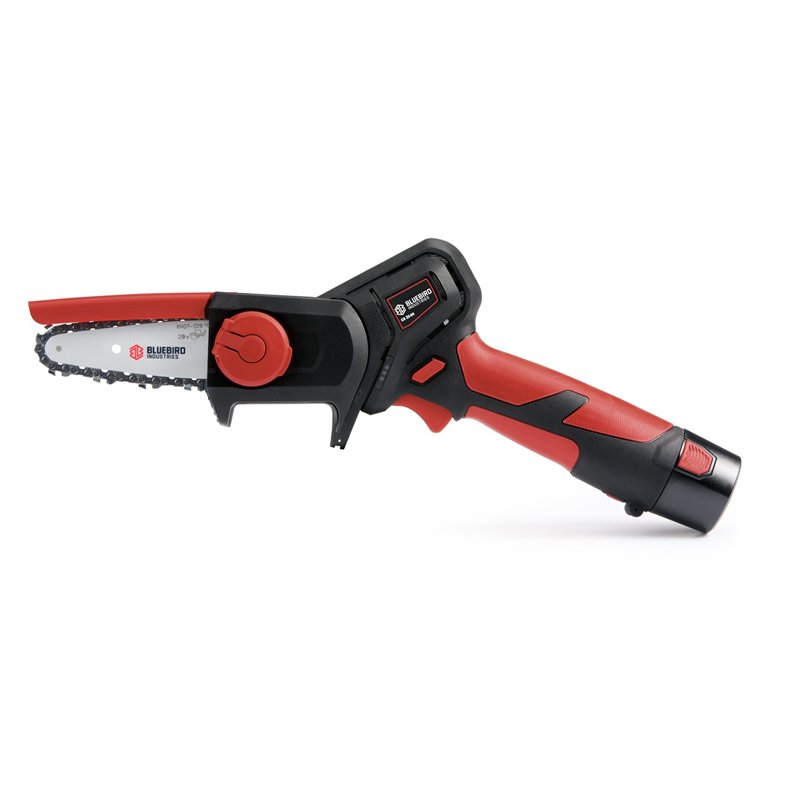

Battery chain pruner Blue Bird CS 22-04: for branch care and pruning

The battery chain pruner Blue Bird CS 22-04 is designed to make cutting branches easier when caring for trees and shrubs. Its cutting assembly combines a guide bar and chain: the bar guides the chain during cutting, while battery power allows work without a mains connection.

Features and use

The 4-inch bar provides a compact cutting assembly. The brushless motor and variable speed let you manage cutting with a battery-powered tool. The two supplied batteries can be alternated during work.

A brushless motor is an electric motor without brushes. The model's instructions must still be followed for use and maintenance.

The bar measurement describes the cutting assembly, while any stated cutting capacity is a separate specification. When choosing a replacement bar or chain, check compatibility with the model and all chain parameters, rather than relying on length alone.

Technical specifications

• Brand: Blue Bird
• Model: CS 22-04
• Product code / MPN: 885610
• EAN: 8025518404043
• Motor: Brushless
• Nominal voltage: 10.8 V
• Maximum voltage: 12.6 V
• Maximum power: 250 W
• Bar: 4 inches
• Chain: Pitch 1/4 inch; gauge 1.1 mm; 29 links
• Stated cutting capacity: 100 mm
• Speed: Variable
• Included batteries: 2 lithium batteries with 12.6 V max – 2.5 Ah
• Weight with battery: 1 kg

Included equipment

• Pruning chainsaw CS 22-04
• 2 lithium batteries with 12.6 V max – 2.5 Ah

Use and maintenance

Follow the manufacturer's instructions for using, lubricating and maintaining the cutting assembly. Before working on the tool, disconnect the power supply as instructed in the manual.
