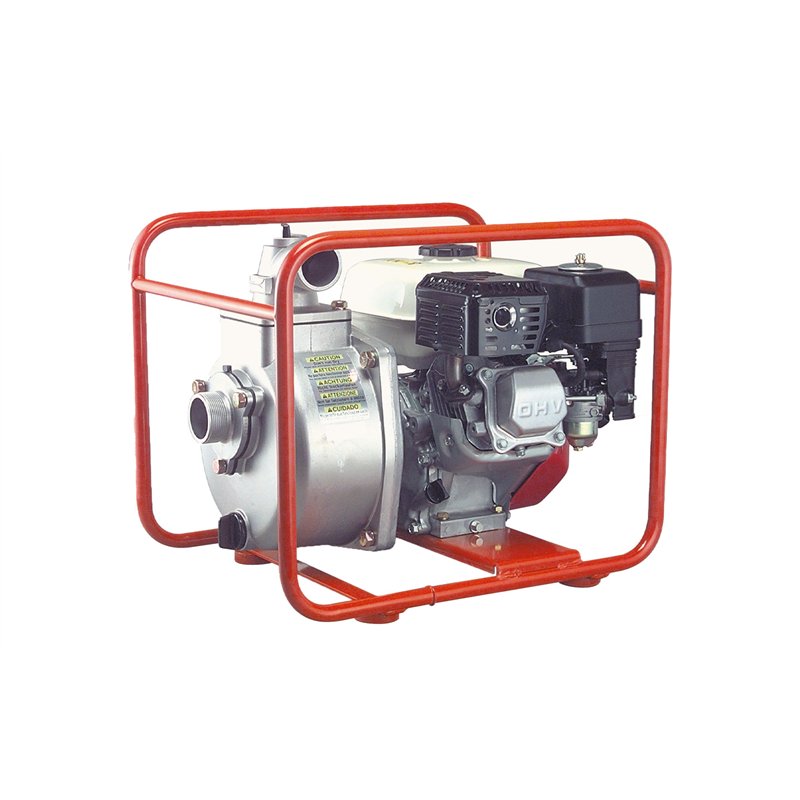

Petrol water pump Blue Bird SERH-50B: for transferring water

The petrol water pump Blue Bird SERH-50B is designed to make water transfer easier for irrigation or draining applications permitted by the manufacturer, without relying on mains electricity. The Honda GX 160 four-stroke engine drives the pump with 2-inch connections.

Flow rate and head

The stated maximum flow rate is 440 litres/min and the maximum head is 57 m. Flow rate indicates the volume of water transferred over time; head expresses the ability to overcome elevation differences and losses in the circuit. The two maximum values are not achieved simultaneously; choose according to the planned route and installation.

Water and connections

Check the manual for the permitted water type, connections and pump preparation. The water type must be compatible with the chosen model. The stated maximum suction depth is 8 m. The greater head of the SERH-50B distinguishes it from pumps designed for higher flow rates.

Use and maintenance

Follow the manual for fuel, lubrication and pre-work checks. Clean and maintain the machine with the engine switched off, checking guards and fasteners.

Technical specifications

• Brand: Blue Bird
• Model / reference: SERH-50B
• Product code: 872620
• EAN: 8025518056303
• Engine / motor: Honda GX 160 four-stroke
• Power: 3.6 kW at 3,600 rpm
• Power supply: Petrol
• Connection diameter: 2 inches
• Maximum head: 57 m
• Maximum flow rate: 440 litres/min
• Displacement: 163 cc
• Maximum suction depth: 8 m
• Weight without petrol and oil: 34 kg
• Dimensions: 545×415×455 mm
• Oil warning indicator: Included

Included equipment

• Machine: Petrol water pump SERH-50B
• Oil warning indicator: Included
