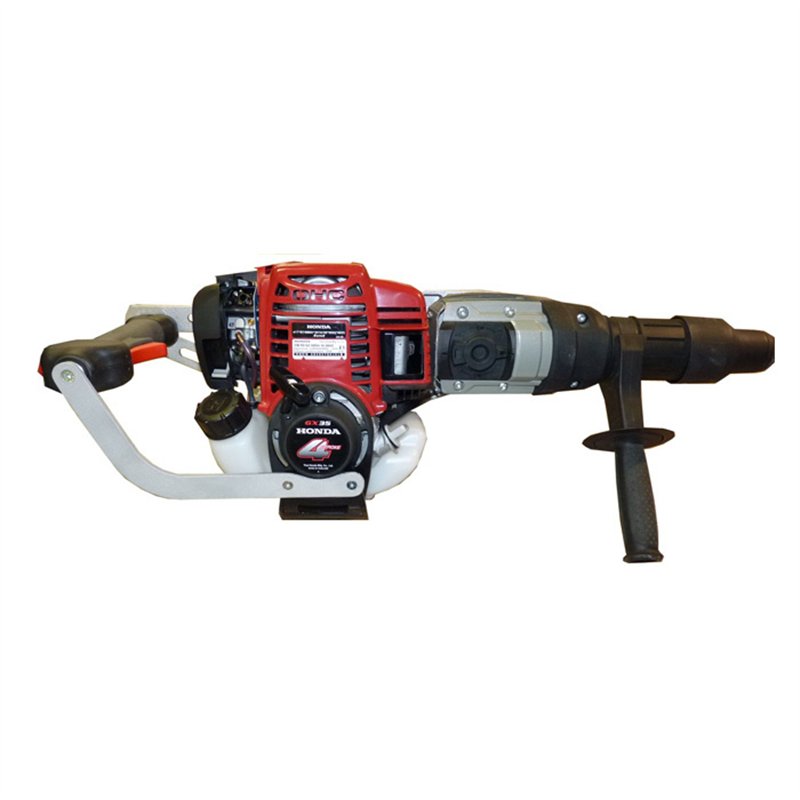

Petrol drill Blue Bird B HB 40 4T: for drilling operations

The petrol drill Blue Bird B HB 40 4T is designed to make drilling operations easier during outdoor work where mains electricity is unavailable. The 35.8 cc Honda GX35 four-stroke OHC engine drives the Bosch GBH 5-40 D hammer unit, using tools with an SDS-max fitting.

Hammer unit and drilling capacity

The hammer unit combines rotation with the tool’s percussion action. The stated capacity is 40 mm in concrete with a twist drill bit; 55 mm with a special bit; 90 mm in masonry with a face core bit. The bit type and material are part of the drilling specification; this is not a single capacity that applies to every tool.

Tools and fuel

The SDS-max fitting identifies the compatible tool system. Drill bits and core bits are not stated as included. The four-stroke engine uses petrol with separate lubrication.

Use and maintenance

Follow the manual for fuel, lubrication and pre-work checks. Clean and maintain the machine with the engine switched off, checking guards and fasteners.

Technical specifications

• Brand: Blue Bird
• Model / reference: B HB 40 4T
• Product code: 883250
• EAN: 8025518359220
• Engine / motor: Honda GX35 four-stroke OHC
• Displacement: 35.8 cc
• Power supply: Petrol
• Hammer unit: Bosch GBH 5-40 D
• Blows per minute: 0–2,900
• Tool fitting: SDS-max
• Drilling capacity: 40 mm in concrete with a twist drill bit; 55 mm with a special bit; 90 mm in masonry with a face core bit
• Power: 1 kW at 7,000 rpm
• Weight without petrol: 11 kg

Included equipment

• Machine: Petrol drill B HB 40 4T
