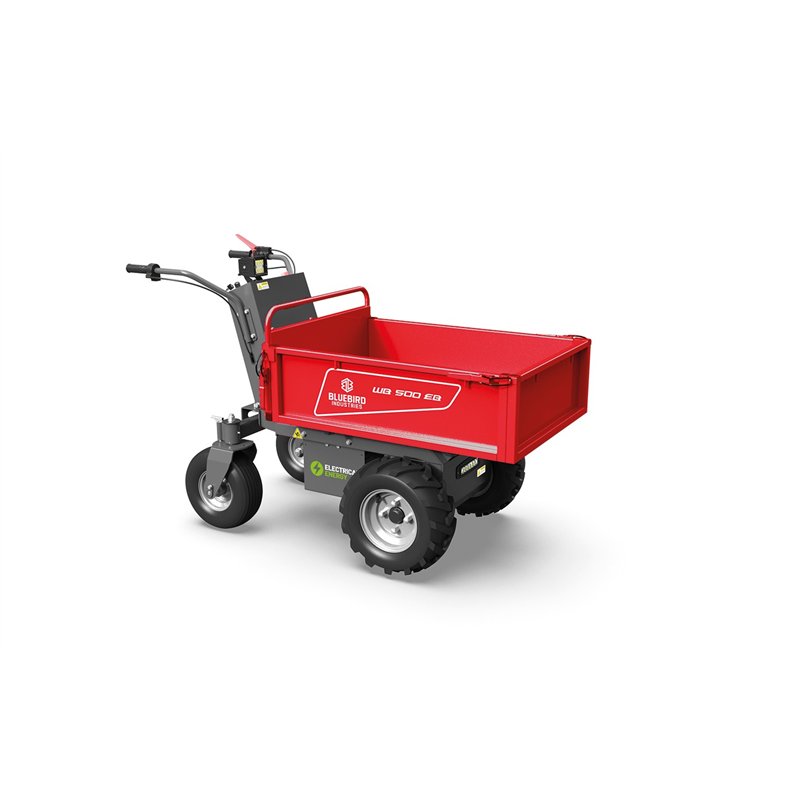

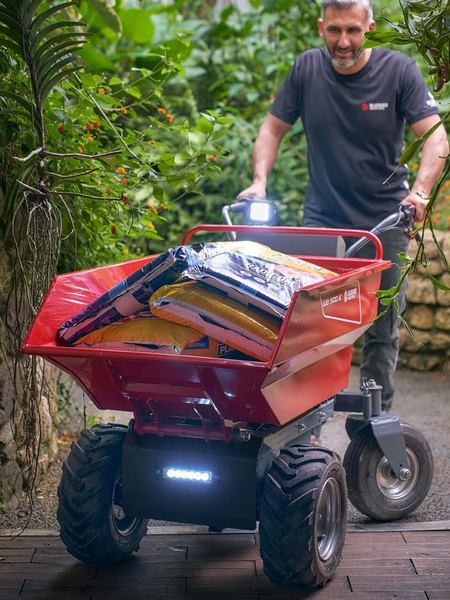

Electric power barrow Blue Bird WB 500 EB: for transporting and unloading materials

The electric power barrow Blue Bird WB 500 EB is designed to make moving materials easier with a agricultural load bed and a stated load capacity of 500 kg. The 1,000 W brushless motor is powered by the configuration’s 48 V 32 Ah battery.

Tipping and travel

The load bed uses manual tipping with piston assistance, allowing material to be unloaded according to the model’s procedure. Three forward speed levels and reverse help manage travel; an electromagnetic brake is part of the system. The display shows battery capacity and speed.

Battery and stated operating times

The indicative operating time is 8–10 hours and charging takes 6–7 hours. Actual operating time varies with the load, route and battery condition.

Use and maintenance

Use the compatible power supply components specified by the manufacturer. Remove the battery before cleaning or working on the tool and follow the manual for assembly and maintenance.

Technical specifications

• Brand: Blue Bird
• Model / reference: WB 500 EB
• Product code: 884570
• EAN: 8025518466447
• Engine / motor: Brushless 1,000 W 48 V
• Battery: 48 V 32 Ah
• Brake: Electromagnetic
• Maximum load: 500 kg
• Load bed: Agricultural
• Tipping: Manual with piston assistance
• Forward speed: High 0–5.0; medium 0–4.2; low 0–3.3 km/h
• Reverse: 0–2.5 km/h
• Display: Battery capacity and speed
• Lights: 30 W
• Stated operating time: 8–10 hours
• Stated charging time: 6–7 hours
• Stated weight: 180 kg

Included equipment

• Machine: WB 500 EB with agricultural load bed
• Battery: 48 V 32 Ah in this configuration
