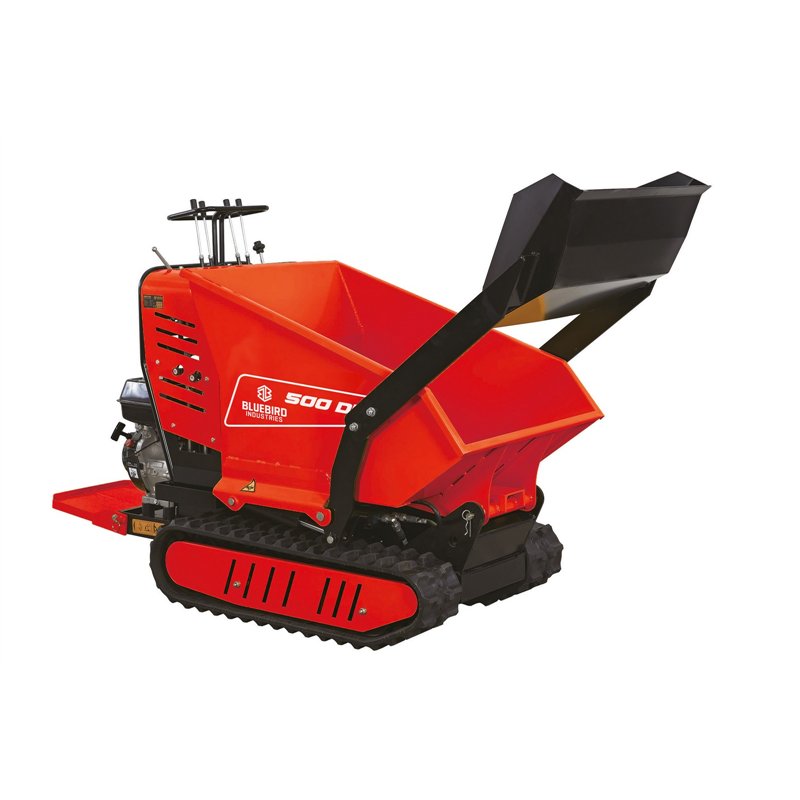

Tracked power barrow Blue Bird Carrier 500 DLH: for transporting and unloading materials

The tracked power barrow Blue Bird Carrier 500 DLH is designed to make transporting materials easier in gardening, agricultural and maintenance work. The 270 cc Loncin engine drives the machine, and the load bed allows a stated maximum load of 500 kg to be moved.

Load bed and material unloading

The load bed in dumper configuration holds the material during transport. The hydraulic tipping mechanism makes unloading easier according to the machine’s controls and instructions. The lifting bucket has a separate capacity of 80 kg, distinct from the 500 kg transport capacity.

Tracked drive

The 180 mm tracks support the machine’s movement; the transmission is hydrostatic. Ground conditions and slope limits must comply with the manual; the stated load capacity must not be assumed to apply to every route.

Use and maintenance

Follow the manual for fuel, lubrication and pre-work checks. Clean and maintain the machine with the engine switched off, checking guards and fasteners.

Technical specifications

• Brand: Blue Bird
• Model / reference: Carrier 500 DLH
• Product code: 884200
• EAN: 8025518382303
• Engine / motor: Loncin
• Displacement: 270 cc
• Power: 9 HP
• Load capacity: 500 kg
• Load bed dimensions: 1065×715 mm
• Load bed height: 660 mm
• Tipping: Hydraulic
• Transmission: Hydrostatic
• Track width: 180 mm
• Stated weight: 360 kg
• Bucket lifting capacity: 80 kg

Included equipment

• Machine: Carrier 500 DLH
• Load bed: Dumper
