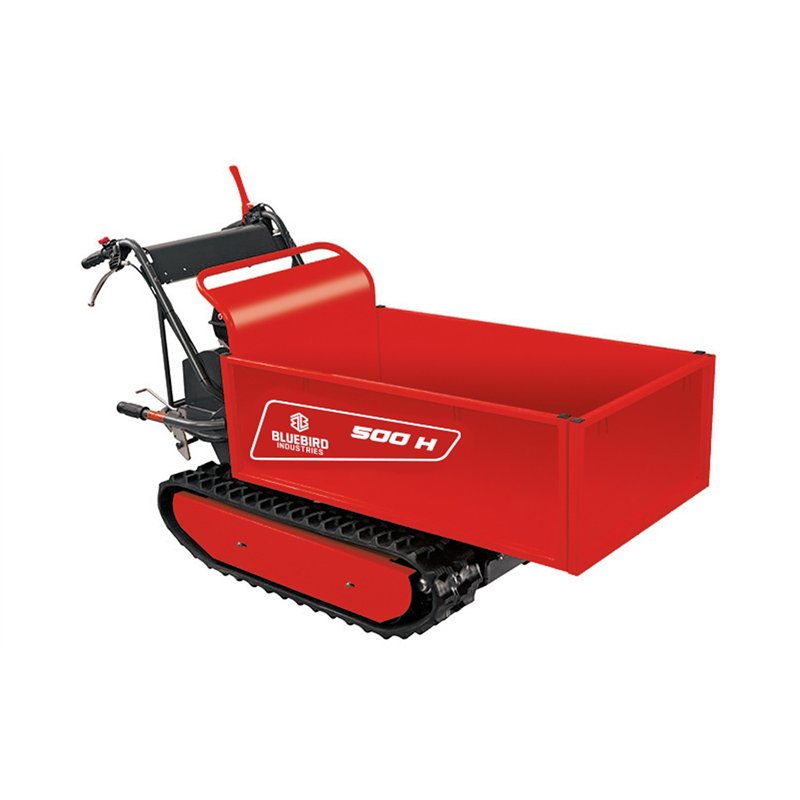

Tracked power barrow Blue Bird Carrier 500: for transporting and unloading materials

The tracked power barrow Blue Bird Carrier 500 is designed to make transporting materials easier in gardening, agricultural and maintenance work. The 196 cc Loncin engine drives the machine, and the load bed allows a stated maximum load of 500 kg to be moved.

Load bed and material unloading

The load bed with sideboards and extendable dimensions listed in the technical specifications holds the material during transport. The manual tipping with piston assistance mechanism makes unloading easier according to the machine’s controls and instructions. Load capacity and machine weight are separate values.

Tracked drive

The 180 mm tracks support the machine’s movement; the transmission provides 3 forward gears and 1 reverse. Ground conditions and slope limits must comply with the manual; the stated load capacity must not be assumed to apply to every route.

Use and maintenance

Follow the manual for fuel, lubrication and pre-work checks. Clean and maintain the machine with the engine switched off, checking guards and fasteners.

Technical specifications

• Brand: Blue Bird
• Model / reference: Carrier 500
• Product code: 883090
• EAN: 8025518356120
• Engine / motor: Loncin
• Displacement: 196 cc
• Power: 6.5 HP
• Load capacity: 500 kg
• Load bed dimensions: 1025–1150×625–885 mm
• Load bed height: 325 mm plus sideboards
• Tipping: Manual with piston assistance
• Transmission: 3 forward gears and 1 reverse
• Track width: 180 mm
• Stated weight: 228 kg

Included equipment

• Machine: Carrier 500
• Load bed: With sideboards
