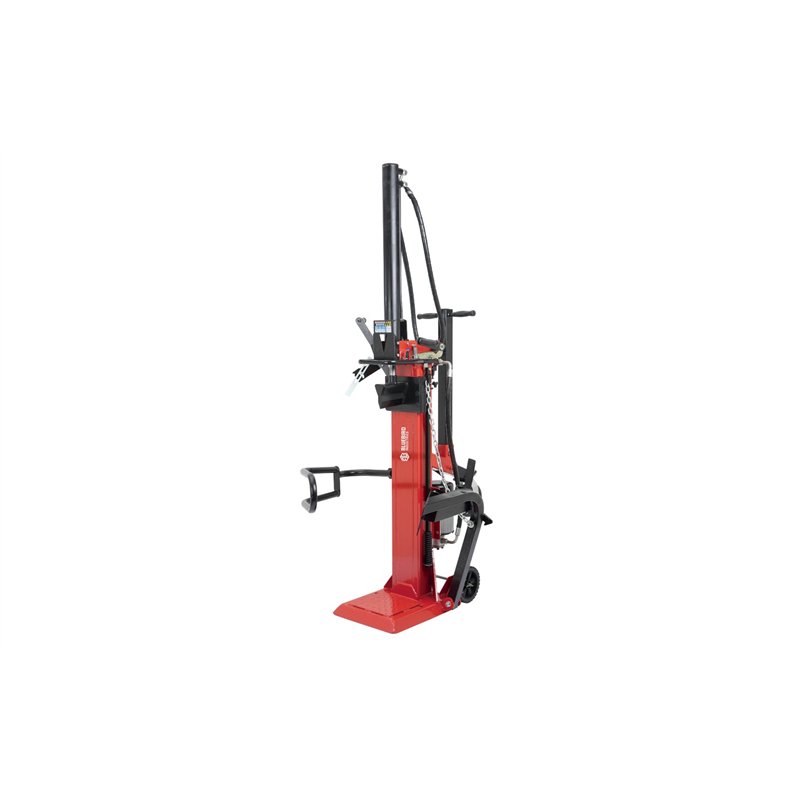

Electric log splitter Blue Bird LSE 11000: for preparing firewood

The electric log splitter Blue Bird LSE 11000 is designed to make firewood preparation easier by splitting logs with a stated mechanical force of 11 tonnes. The single-phase electric motor operates from a 230 V supply.

Log dimensions and configuration

The model’s specification table lists a splitting length of 1040 mm and a diameter of 300 mm. These dimensions help you choose the machine for the logs to be prepared, together with the conditions permitted by the manual. The vertical orientation determines how the log is positioned in the machine.

Use and maintenance

Follow the manual for positioning logs and using the controls. Stop the machine and disconnect its power source before maintenance. Check the system’s connections and guards.

Technical specifications

• Brand: Blue Bird
• Model / reference: LSE 11000
• Product code: 883730
• EAN: 8025518369793
• Power source / engine: Single-phase electric 230 V
• Stated splitting force: 11 t
• Splitting length: 1040 mm
• Splitting diameter: 300 mm
• Stated weight: 174 kg
• Power: 3,000 W
• Orientation: Vertical

Included equipment

• Machine: Electric log splitter LSE 11000
