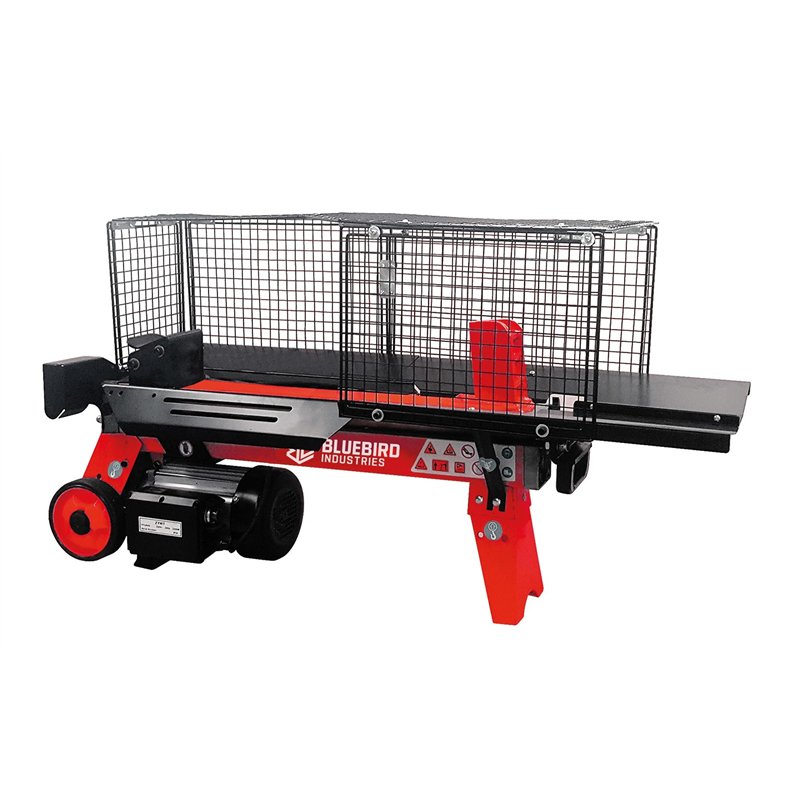

Electric log splitter Blue Bird LSHE 7000: for preparing firewood

The electric log splitter Blue Bird LSHE 7000 is designed to make firewood preparation easier by splitting logs with a stated mechanical force of 7 tonnes. The single-phase electric motor operates from a 230 V supply.

Log dimensions and configuration

The model’s specification table lists a splitting length of 520 mm and a diameter of 250 mm. These dimensions help you choose the machine for the logs to be prepared, together with the conditions permitted by the manual. The horizontal orientation determines how the log is positioned in the machine.

Use and maintenance

Follow the manual for positioning logs and using the controls. Stop the machine and disconnect its power source before maintenance. Check the system’s connections and guards.

Technical specifications

• Brand: Blue Bird
• Model / reference: LSHE 7000
• Product code: 886010
• EAN: 8025518425017
• Power source / engine: Single-phase electric 230 V
• Stated splitting force: 7 t
• Splitting length: 520 mm
• Splitting diameter: 250 mm
• Stated weight: 59 kg
• Power: 2,300 W
• Orientation: Horizontal

Included equipment

• Machine: Electric log splitter LSHE 7000
• Stand 754820: Optional, not included
