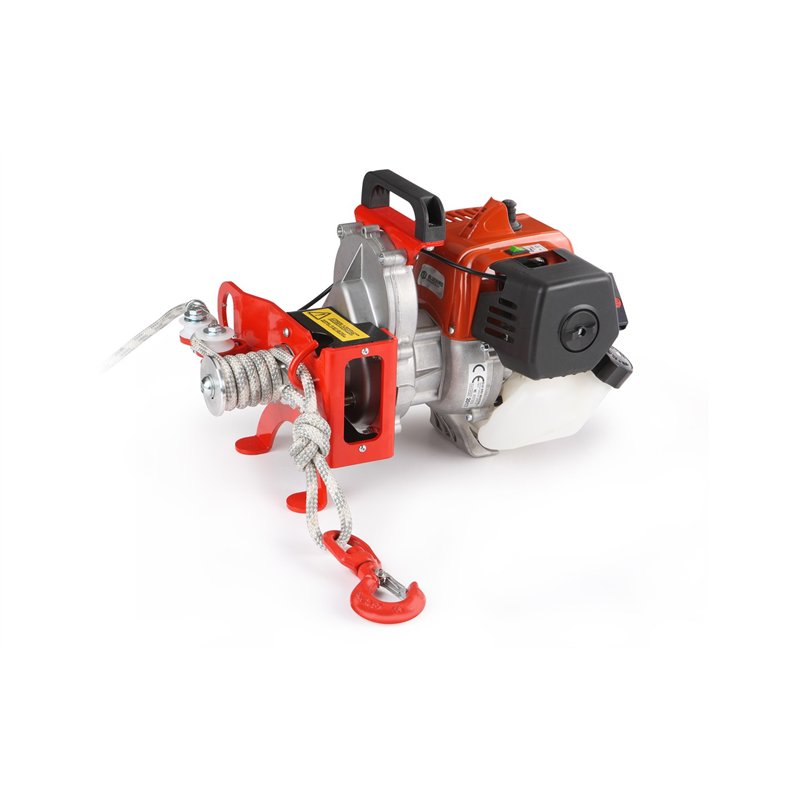

Petrol winch Blue Bird TWH 500 pulling capacity 400 kg without rope: for pulling and moving materials

The petrol winch Blue Bird TWH 500 is designed to make pulling operations easier using a rope connected to the material being moved. The engine powers the rope winding system; choose anchoring and accessories according to the model’s manual. The direct pulling capacity stated by Blue Bird is 400 kg.

Choosing the rope

A 10 mm diameter polyester rope, purchased separately, is recommended for this model. The stated winding speed is 25 m/min. Follow the winch manual when matching the rope and accessories.

The pulling value refers to pulling material and must not be interpreted as lifting capacity. Whether a rope is included depends on the version; any redirects require the configuration and accessories specified by the manufacturer.

Technical specifications

• Brand: Blue Bird
• Model: TWH 500
• Product code: 883500
• EAN: 8025518363173
• Engine / motor: Honda four-stroke
• Displacement: 47.9 cc
• Power: 1.47 kW at 7,000 rpm
• Rope winding speed: 25 m/min
• Stated direct pulling capacity: 400 kg
• Stated weight: 9.9 kg
• Recommended rope: Polyester Ø 10 mm, not included

Included equipment

• Machine: Winch TWH 500
• Rope: Not included

Use and maintenance

The values shown are pulling figures stated by Blue Bird. The anchoring configuration, rope and accessories must follow the model’s instructions. Before use, check the condition of the rope and connecting components.
