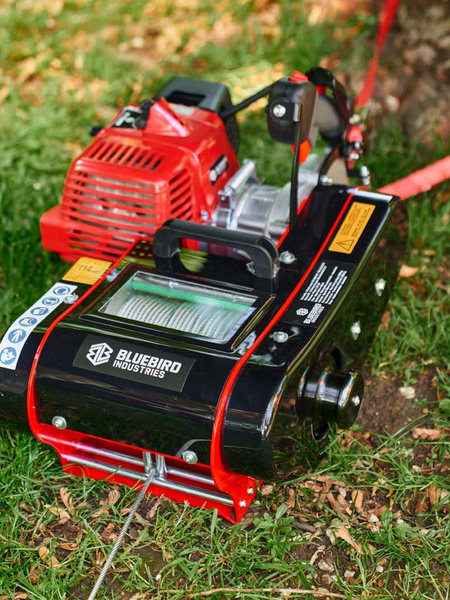

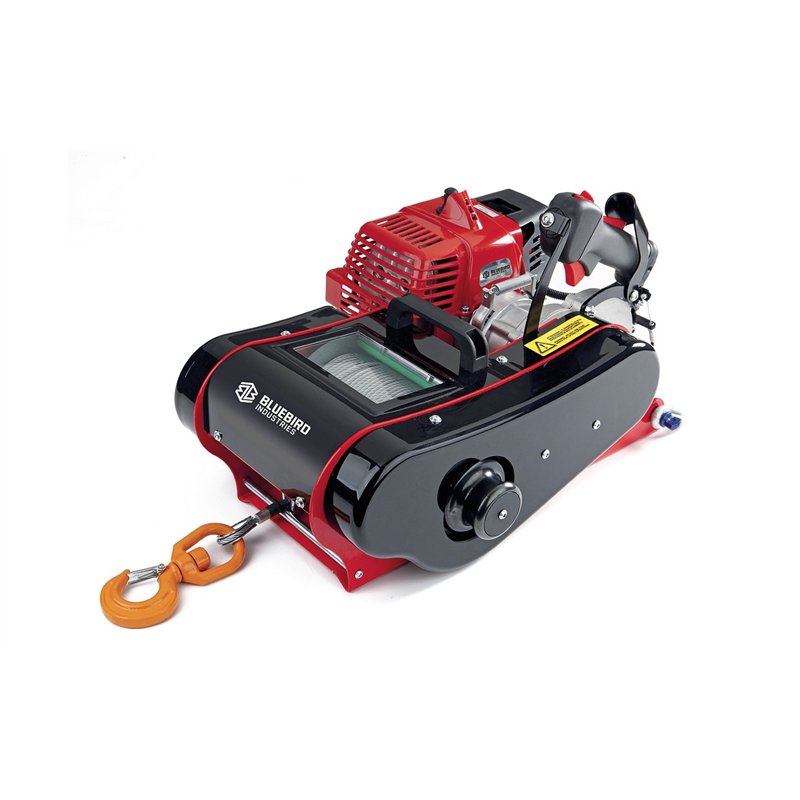

Petrol winch Blue Bird: for pulling and moving materials

The petrol winch Blue Bird FW 1610 STK is designed to make pulling operations easier using a rope connected to the material being moved. The engine powers the rope winding system; choose anchoring and accessories according to the model’s manual. The direct pulling capacity stated by Blue Bird is 1,300 kg.

Rope and pulling configuration

This version includes an 80 m Kevlar rope. The rope guide and automatic brake are specified. The 2,600 kg value refers to pulling with a redirect: this configuration requires suitable accessories chosen according to the manual. The pulley is purchased separately.

The pulling value refers to pulling material and must not be interpreted as lifting capacity. Whether a rope is included depends on the version; any redirects require the configuration and accessories specified by the manufacturer.

Technical specifications

• Brand: Blue Bird
• Model: FW 1610 STK
• Product code: 887580
• EAN: 8025518449792
• Engine / motor: ST POWER two-stroke
• Displacement: 57.9 cc
• Power: 2.8 kW at 7,500 rpm
• Rope winding speed: 25 m/min
• Stated direct pulling capacity: 1.300 kg
• Stated weight: 28 kg with rope
• Included rope: Kevlar Ø 5 mm – 80 m
• Stated pulling capacity with redirect: 2.600 kg
• Rope guide: Provided
• Automatic brake: Provided

Included equipment

• Machine: Winch FW 1610 STK
• Included rope: Kevlar Ø 5 mm – 80 m

Use and maintenance

The values shown are pulling figures stated by Blue Bird. The anchoring configuration, rope and accessories must follow the model’s instructions. Before use, check the condition of the rope and connecting components.

The two-stroke engine requires a 2% fuel mixture with synthetic oil. Follow the manual for fuel preparation and maintenance.
