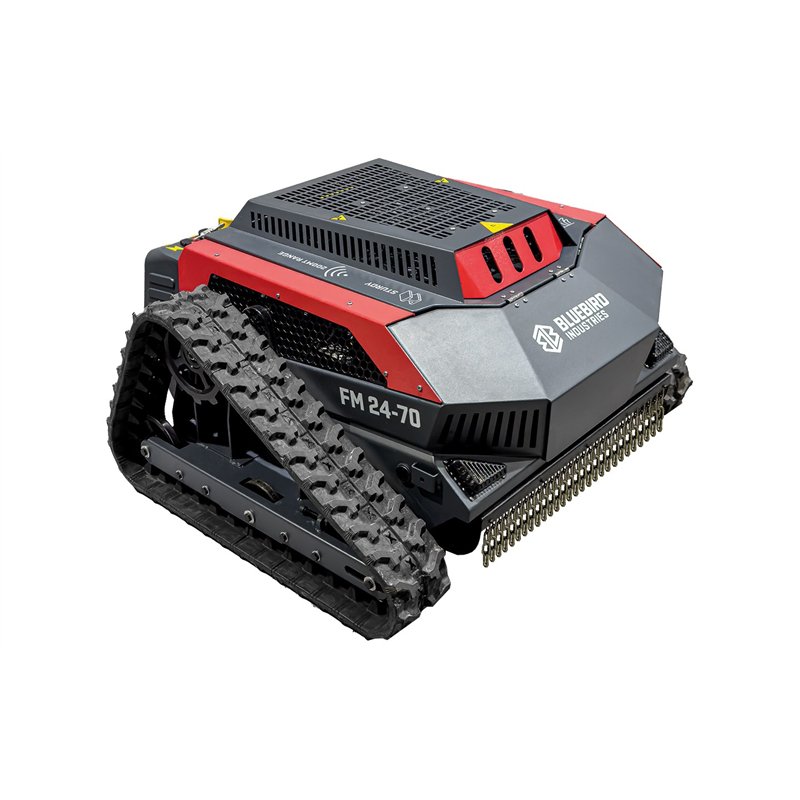

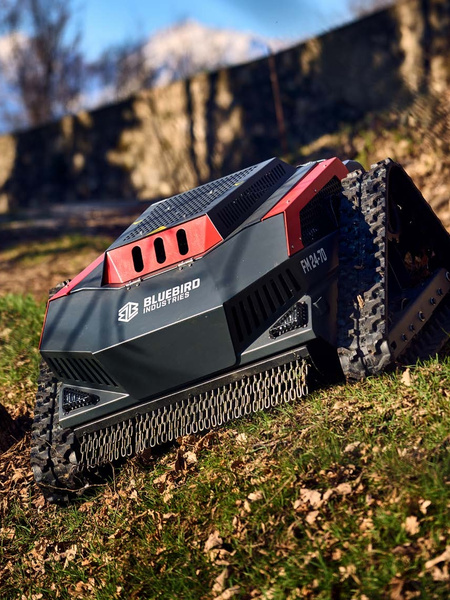

Remote-controlled tracked brush mower Blue Bird FM 24-70: mowing vegetation by remote control

The remote-controlled tracked brush mower Blue Bird FM 24-70 is designed to make mowing vegetation easier by guiding the machine with a remote control. The tracks support movement while the operator controls manoeuvres from a position permitted by the manual, without walking directly behind the cutting assembly.

This remote-controlled brush mower is guided by the operator using radio control to manage movement and manoeuvres from a distance during mowing.

Cutting and power supply

The hybrid system combines a 452 cc Loncin engine for mowing with two electric drive motors. The floating blades work across a 685 mm width. The drive motor power ratings are separate from the cutting motor rating.

Control and working limits

The radio link operates in the 2.4G band; the stated communication range is 200 m and does not establish a safe operating distance in every environment. The stated lateral slope limit is 30°; the terrain, orientation and working conditions must comply with the manual.

Use and maintenance

Follow the manual for fuel, lubrication and pre-work checks. Clean and maintain the machine with the engine switched off, checking guards and fasteners.

Technical specifications

• Brand: Blue Bird
• Model / reference: FM 24-70
• Product code: 889360
• EAN: 8025518514186
• Engine / motor: Loncin 452 cc
• Electric motors: 2 brushless motors
• Stated electric motor power: 1200 W
• Blade type: Floating
• Cutting assembly size: 685 mm
• Speed: 47 m/min
• Remote control frequency band: 2.4G
• Stated communication range: 200 m
• Net weight: 285 kg
• Maximum voltage: 24 V
• Stated maximum lateral slope: 30°
• Dimensions: 990×1150×640 mm
• Track width: 150 mm

Included equipment

• Machine: FM 24-70
• Remote control: Part of the system
