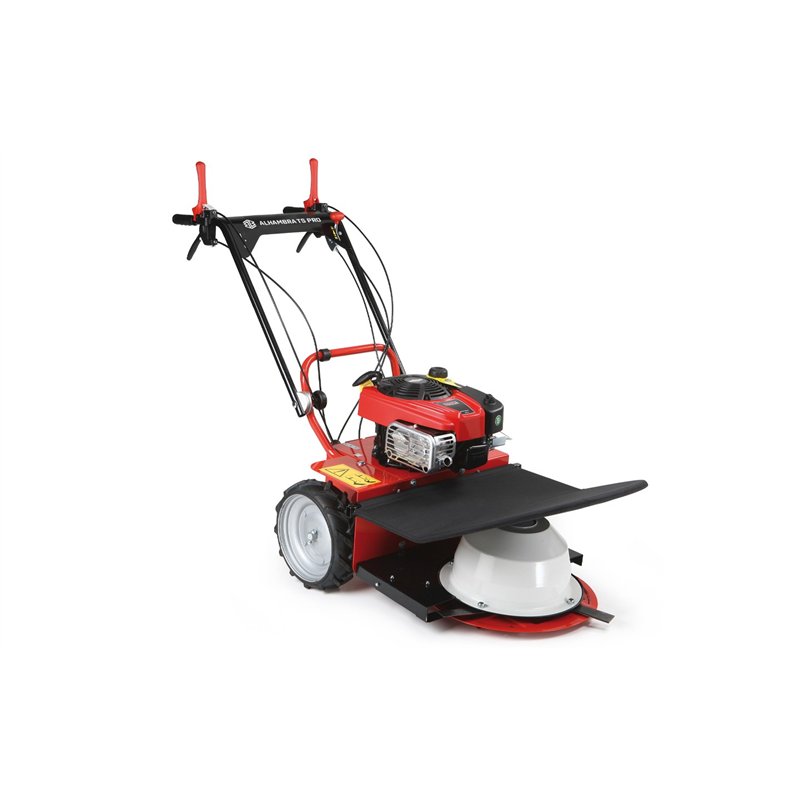

Wheeled brush cutter Blue Bird ALHAMBRA TS 170 HO: for mowing and maintaining green areas

The wheeled brush cutter Blue Bird ALHAMBRA TS 170 HO is designed to make grass mowing easier while supporting the machine on the ground. The 166 cc Honda GCV170 four-stroke engine is paired with a 60 cm working width and solid wheels.

Cutting system and drive

The floating knife assembly cuts the grass as the machine passes. The configuration includes the blade clutch brake; the adjustable grass guard curtain is available separately. The gearbox offers 1 forward gear for passes and manoeuvres within the intended applications.

Use and maintenance

Follow the manual for fuel, lubrication and pre-work checks. Clean and maintain the machine with the engine switched off, checking guards and fasteners.

Technical specifications

• Brand: Blue Bird
• Model / reference: ALHAMBRA TS 170 HO
• Product code: 881770
• EAN: 8025518407990
• Engine / motor: Honda GCV170 four-stroke
• Displacement: 166 cc
• Torque: 11.1 Nm at 2,500 rpm
• Cutting system: Floating knives
• Width listed in the table: 60 cm
• Gears: 1 forward gear
• Wheels: Solid
• Blade clutch brake: Yes
• Stated weight: 74.1 kg

Included equipment

• Machine: ALHAMBRA TS 170 HO
• Cutting assembly: Floating knives
